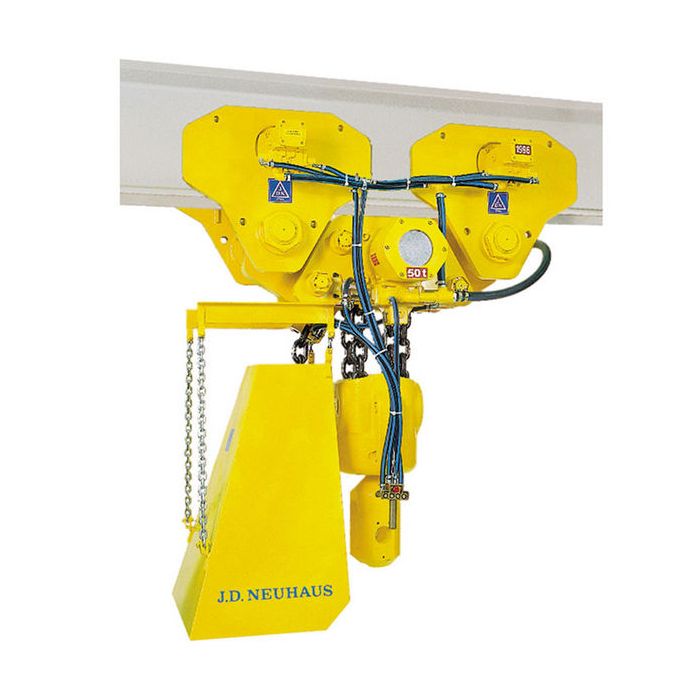

JDN Monorail Air Powered Chain Hoist - EH Model



Carrying capacities: 10 t up to 115 t Swl per unit



JDN Monorail Hoists are available with air or hydraulic drive for the offshore industry and where heavy loads in reduced spaces have to be moved. According to application JDN Monorail Hoists can be deployed as Double Lifting Gear: working in parallel as for example in BOP handling systems or working in tandem connected by a coupling rod as for example for handling grinding rollers in the cement industry.

Classification as Standard: Ex II 2 GD IIA T4(X) / II 3 GD IIB T4(X) - Higher Classifications available upon request






Standard Features:

  • ideally suited for working in hazardous areas (explosion protection) insensitive to humidity dust and temperatures from -20 °C to +70 °C
  • low headroom, compact design
  • favourable air consumption
  • world wide service



Technical Details:

  • starting safe vane motor of low maintenance
  • disc brake holding the load safely in any position immediately even in case of air interruption
  • all gear components made of tempered or hardened high-grade steels
  • anti-climb and anti-drop devices
  • lateral guiding plates
  • control unit with emergency shut-off valve



Options:

  • rack and pinion drive
  • overload protection
  • two driving speeds
  • filter silencer
  • Increased Spark proof protection



Special Versions:

If  you don’t find the right hoisting system for your special application in our standard programme, no problem: special versions are our speciality.

Individual official acceptance by corresponding authorities to your choice.
