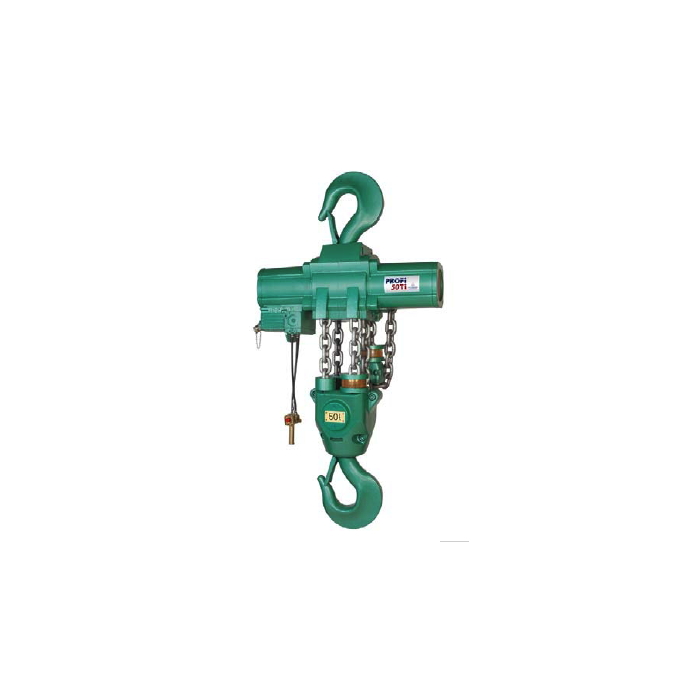

JDN Air Powered Chain Hoist - PROFI Model



Carrying capacities: 25 t to 100 t Swl

Air pressure: 4 bar or 6 bar

JDN Air POwered Chain Hoists from the PROFI Series are very robust and therefore suitable for tough industrial applications even in continuous working processes. According to requirement there are various control systems. For traversing loads there are different trolleys to meet your application and specification requirements.



Classification as Standard: Ex II 2 GD IIA T4(X), II 3 GD IIB T4(X) - Higher Classifications available upon request.




Standard features:

  • suitable for application in hazardous areas
  • sensitive infinitely variable speed control for the precise positioning of loads
  • easy operation
  • suitable for lube-free operation
  • frequent switching and extended duty cycles
  • low maintenance
  • low headroom, lightweight
  • sound absorption
  • insensitive to dust, humidity and temperatures ranging form -20 °C up to +70 °C
  • from 1 t upwards with overload protection (EC-version)


Technical Details:

  • fail-safe starting conditions, low maintenance vane motor
  • chain sprocket in the mid section runs in dust proof maintenance free ball bearings
  • planetary gear in long life grease lubrication, all teeth made of tempered or hardened high grade steel
  • chain and hook of high quality tempered steels with a breaking strength of five times the nominal load
