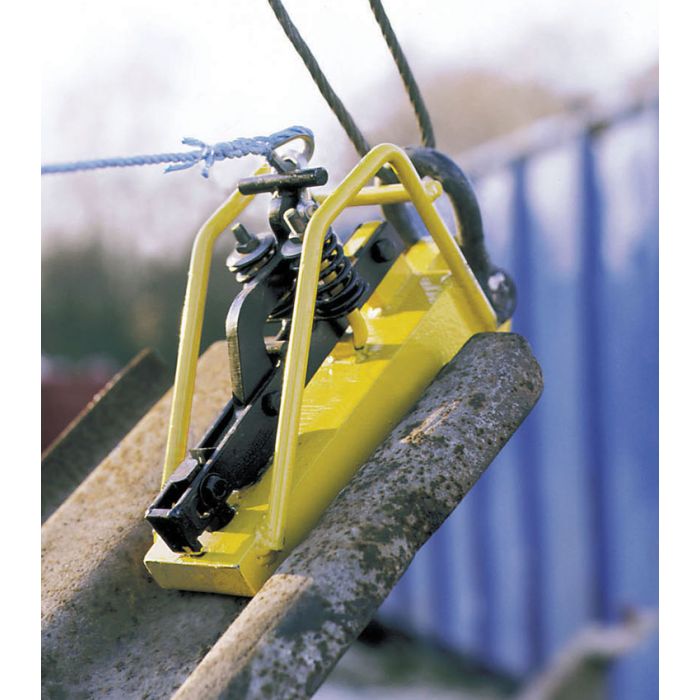

Pile Pitching Clamp

Designed for use pitching sheet steel for trenches

Model:  CP

Manufacturer: Camlok (Designed and Made in Great Britain)

Capacities: 2000 kg, 3000 kg and 5000 kg

Jaw opening: 20 to 35 mm (Depending on capacity)

Throat Depth: 228 mm



Product Overview

The Camlok CP range of clamps are specifically designed for pitching sheet steel piling within trenches. This series comes fitted with a 15 metre length of rope which allows the jaws to be release from the ground. These units also come fitted as standard with a shackle.

Once the grab is set onto the trench shield, a spring-loaded bolt locks itself into the hole of the shield. Releasing the bolt is done with the 15 m pull cord attached to the grab.

The sheet piling clamping device is available in three lifting capactities 2000 kg, 3000 kg & 5000 kg.

These clamps are NOT designed for extracting driven piles.  For extracting driven piles the Camlok PP range is required, availabel in 3000 kg and 8000 kg WLL.

As with all our Camlok equipment they have been designed with maintenance and service in mind, and therefore spare parts are available from U.K. Stocks and repair work can be carried out by a suitably trained and component person.
