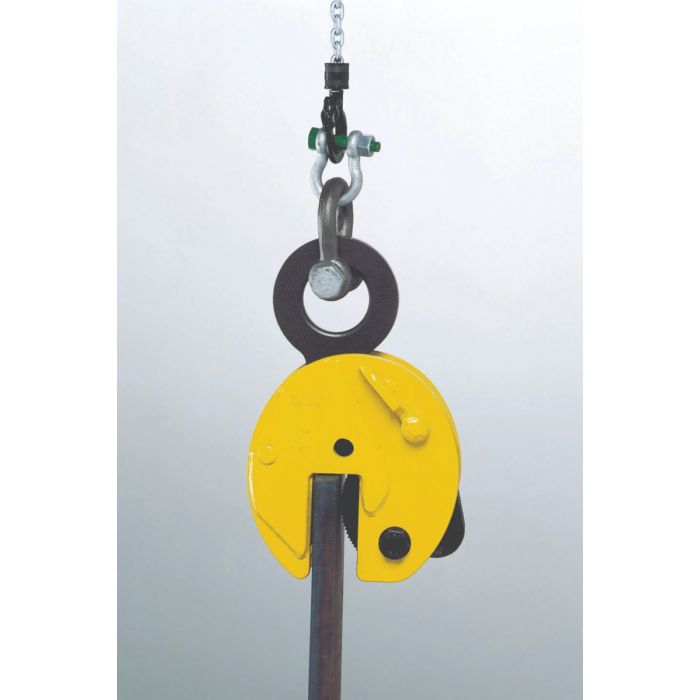

Vertical Lifting Plate Clamp

Heavy Duty with Safety Lock

Model:  CZ

Manufacturer: Camlok (Designed and Made in Great Britain)

Capacities: 1000 kg, 2000 kg, 3000 kg, 4000 kg, 6000 kg, 8000 kg, 10,000 kg,

15,000 kg, 20,000 kg and 30,000 kg

Jaw opening: 0 to 130 mm (Depending on WLL)



Product Overview

The Camlok CZ plate clamp is primarily used for the transportation of sheet metal and steel plates in vertical lifting applications.  They can also be used for lifting and rotating steel materials through 180º.

Available with either a lifting hook ring or link to attach a crane or hoist load hook assembly.

This clamp can also be used for moving steel constructions and profiles.  It is recommended that a pair of clamps are used in conjunction with a suitable spreader beam for long materials which have a tendency to sag or flex.

The jaw is opened and closed with the locking lever. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load attached.

Heavy duty and welded shell construction, designed for the toughest of applications.

The plate surface of the material being clamped must have a hardness level below HRC 30/Brinell 300.

For this clamp to operate safely and secure the material a minimum load of 10% of the lifting clamp WLL is required.

As with all our Camlok equipment they have been designed with maintenance and service in mind, and therefore spare parts are available from U.K. Stocks, and repair work can be carried out by a suitably trained and component person.
