Horizontal Lifting Clamp For Thin Sheets of Steel

Designed with Sag and Flex of the Lifted Load in Mind

Model:  THK

Manufacturer: Camlok (Designed and Made in Great Britain)

Capacities: 750 kg, 1500 kg, 3000 kg, 4500 kg, 6000 kg and 9000 kg Swl (Per Pair)

Jaw opening: 0 to 60 mm (Depending on capacity)

All Specification and Pricing Details are per pair of clamps.

These lifting clamps are to be used in pairs only.

Shackles not included.



Product Overview

These clamps are designed for the lifting and transportation of thin sheets of steel with a material surface hardness of Brinell 300/32 Rockwell C.

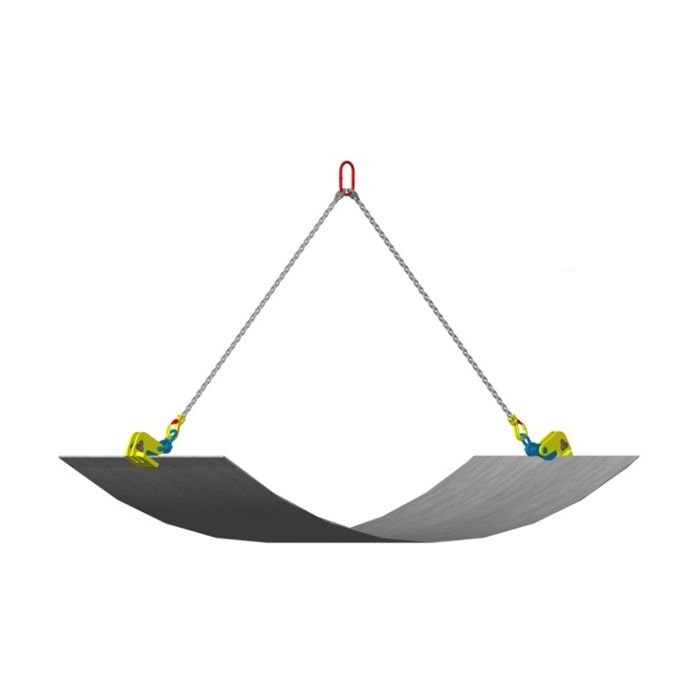

The Camlok THK horizontal lifting clamps allows operators to lift long sections of steel using a clamp at each end and a chain sling as the attachment with a maximum angle of 60º.

The Camlok THK clamp is extremely light weight in construction, up to a maximum self weight of 17.5 kg each for the 9000 kg Swl version (Swl Ttoal per pair), therefore providing users with a portable piece of lifting equipment.

A Jaw capacity of up to 60 mm for the largest capacity unit and 25 mm for 750 kg Swl (Per Pair), provides sufficient clearance for ease of loading the sheet steel within the clamp jaw.

The theeth of jaw are reversed to provide a secure load fix.

As with all our Camlok equipment they have been designed with maintenance and service in mind, and therefore spare parts are available from U.K. Stocks and repair work can be carried out by a suitably trained and component person.

When using the clamps in pairs, the top angle between the chain/rope legs must not exceed 60°.
