Donati Electric Hoist

DMK Series - Available as Top Hook or Combination Trolley

Capacities:- 125 kg to 4,000 kg Swl

Power Supply: Euro-voltage 380V to 415v, 3-phase, 50 Hz

Electric Chain Hoist Fixed Position

Sold with eyebolt suspension
More than 150 standard executions - 1 or 2 lifting speeds
Capacities from 125 up to 4000 kgs.
FEM (ISO) : 2M(M5)
Standard hook runs 3 mts. (different lengths on request)
High-strength steel rod chain 80kg/mm²
Noise level less than 85 dB (A)
Epicyclic crown wheel reduction gear and self-braking electrical motor with conical brake that ensures efficient braking action.
Motor protection IP55, insulation class “F”
Supply voltage : 400V- 3 phase - 50 Hz.
Low voltage controls 48V
Single chain fall (up to 2000 kgs.) with clutch device, dual chain falls (up to 4000 kgs.) with electromechanical overload device and raise/lower limit switches

Electric Chain Hoist with Hand-Push Trolley

Horizontal movement by push/pulling the load
Recommended for light duty and short load travel only
The push trolley is adjustable for variable flange widths, fitted with steel machined wheels, permanently self-lubricated bearings, fitted with anti tilt derailment bars and equiped with shock absorbing buffers.
Capacities from 125 up to 4000 kgs.
FEM (ISO) : 2M(M5)
Working at one or two lifting speeds
Other characteristics as per DMK in fixed execution

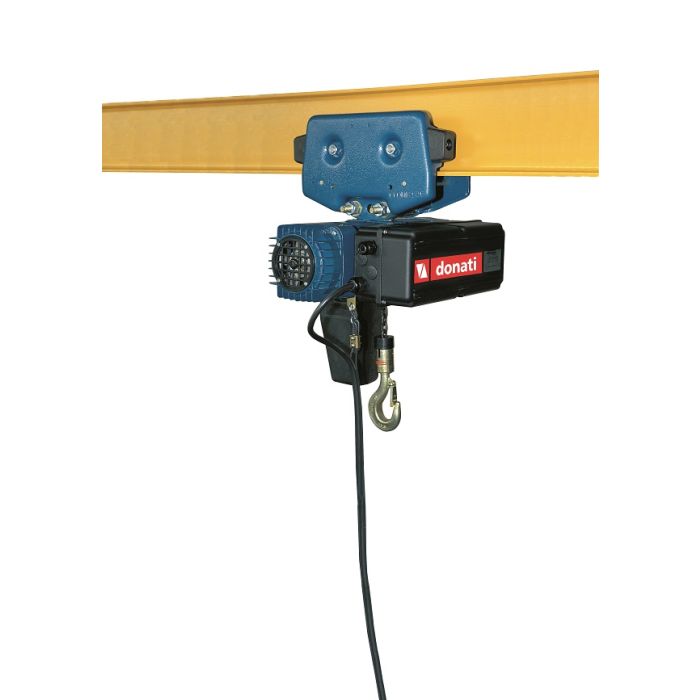

Electric Chain Hoist with Electric Trolley

Movement operated by the push button panel fitted on the hoist
Recommended when manual load pushing is not feasible and for heavy duty use.
The electric trolley is adjustable for variable flange widths, fitted with steel machined wheels, permanently self-lubricated bearings, fitted with anti tilt derailment bars to prevent drop or derailing, and equipped with shock absorbing buffers.
The trolley can be supplied at:
- 1 speed - m/min. 11 or 22
- 2 speeds - m/min. 7/22
Electric limit switches to limit the horizontal travel of the electric trolley on the beam
Suitable for rectilinear monorails; with special devices it can runs on curves (minimum internal radius on the technical catalogue)
Capacities from 125 up to 4000 kgs.
FEM (ISO) : 2M (M5)
Other characteristics as per DMK in fixed execution

Electric Chain Hoist with Electric Trolley - Low Headroom Design

The best solution to get the maximum hook-run; fitted on a frame with a return system for the chain, the frame is mounted on 2 trolleys.
Available in electric or hand-push execution
Capacities from 125 up to 4000 kgs.
FEM (ISO) : 2M(M5)
Lifting and travelling at 1 or 2 speed
Other characteristics as per DMK in fixed execution
