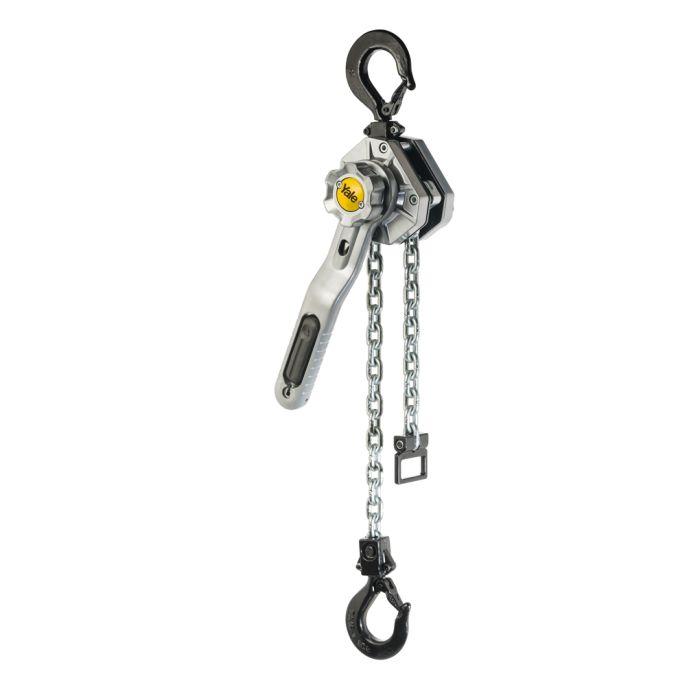

Yale - Ratchet Lever Hoist - YaleERGO 360
Capacity: 750 kg - 9,000 kg
Innovative 360° Degree Crank Handle
- 360° handle rotation increases efficiency, allowing the hoist operators to work up to 12 times faster than with a conventional ratchet lever hoist.
- Easy and effective operation from any angle with a handle that folds down and locks into position on either side of the lever.
- Design keeps the operator’s body aligned with the load chain, reducing the risk of the twist effect – when a hoist twists around the chain. No need to use a second hand to stabilize the hoist.
- Requires 30% less effort to operate this new design lever hoist
- Anti slip operating handle
- Crank handle made of durable polyamide with a heavy-duty steel core for arduous environments
- Distintive clicking sound ensures that the operator knows that the handle is locked into position. To return the handle to an upright position, simply pull the handle outward and snap into place inside the lever.
Crank Handle
New innovative 360° rotating design, increasing productivity due to the faster operating speed, whilst also reducing the risk of operator injury.
Highly Visible Directional Indicator
Easy to operate and highly visible directional indicator which clearly shows the Yale ERGO hoist operator the direction as lifting, lowering or neutral
Effortless Free Chaining of Hoist Load Chain
- For quick take up and positioning of slack chain - even with one hand. Designed not to be accidently free chain while under load. Cast chain end stop allows the user to easily position the chain in free-chaining mode and prevents it from entering the liftwheel and jamming the hoist.
Precise Load Control
- Enclosed Weston-type brake for accuarte load positioning.
Over Engineered
- Lightweight aluminium housing can withstand thousands of operational cycles and rigorous use, including the highest quality of internal bearings and a high quality powder coat finish for protection in harsh enviroments.
Excellent Corrosion Protection
- Heavy duty chain guide and stripper, cast from high quality steel and then zinc plated for additional protection against corrosion.
Maintenance Friendly
- Forged hooks that are bolted to the chain that can be easily removed by a competent person for ease of inspection. Forged hooks benefit from being able to yield under overload in the event of misuse, the hooks also come with a safety catch as standard to ensure a positive and secure engagement of the load.
