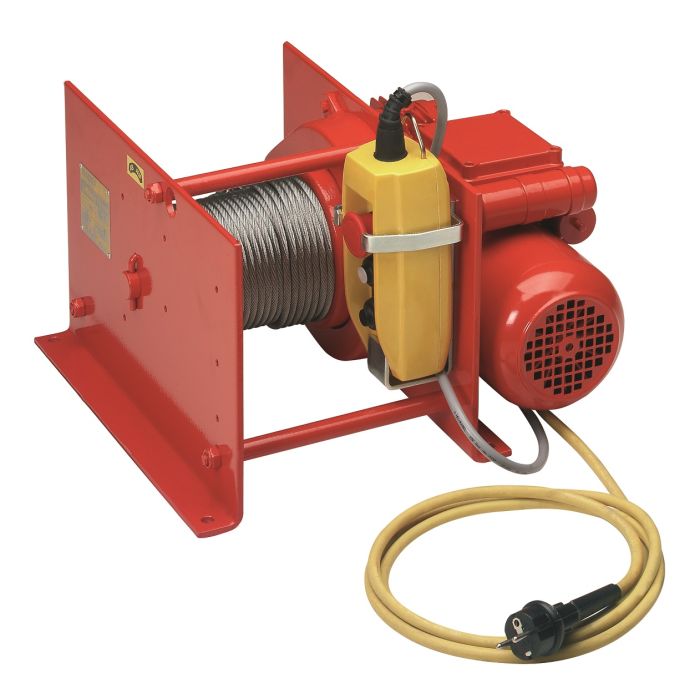

Hadef Electric Winch
Suitable for Pulling or Lifting Appllications
Model: 43/86 E Liftboy
Manufacturer: Hadef - (Germany)
Capacities: 125 kg, 250kg, 500 kg, 990 kg, 1000 kg and 2000 kg
Product Overview
HADEF wire rope winches are designed for stationary use and are fitted with pre-drilled mounting holes within the base feet. The two sideplate halves are connected by threaded bolts and distance tubes. The rope drum between the two housing halves offers wire rope exits in several directions. Different installation positions are possible - make sure the drum axle is always positioned horizontally.
The winch lifting gear is operated by a standard type hand-held push button pendant, and includes emergency stop button as standard. Our range of Hadef Liftboy electric winches are fitted with a fail safe brake, which is integrated and prevents the load from slipping after releasing the pendant control buttons.
The Liftboy is a robust and light weight in construction electric winch, with a steel construction.
Suitable for numerous applications and environments, and can be found in manufacturing production assembly, industrial, mining, petro-chem, food industry, construction sites to name but a few.
Available in 230v single phase or 230v to 400v three phase.
For winches with ungrooved drum the rope can be wound round the drum in both directions.
In case of changes of the winding direction of the wire rope, electrical wiring must also be changed according
to the wiring diagram.
Features and Options
- Extremely compact and light weight
- IP54 rating as standard - IP66 available as an extra cost option
- Single Phase electric winch comes as standard with drect control and three phase low voltage control
- 1 metre pendant controls are included as standard - alternative pendant lengths available at extra cost
- Radio Remote control options are available
- Geared Limit Switches for top and bottom hook positions (Lifting Type)
- Plain drum type as standard, grooved drum options available
- Extended drum for greater wire rope capacity
- Rope Pressure Roller Extra cost feature
- Few components for easy maintenance
- Wear resistant motor braking system
- Fail safe spring brake assembly
- light weight for easy handling
- 40% duty rating
- Disengaging clutch available for pulling applications (Disengaging clutch not available for 125kg swl)
- FEm Duty Calssification: 1Bm M3
- Maintenance free bearings - sealed for life design
- Insensitive to dust, humidity and temperatures from -20 ° C to + 40 ° C
