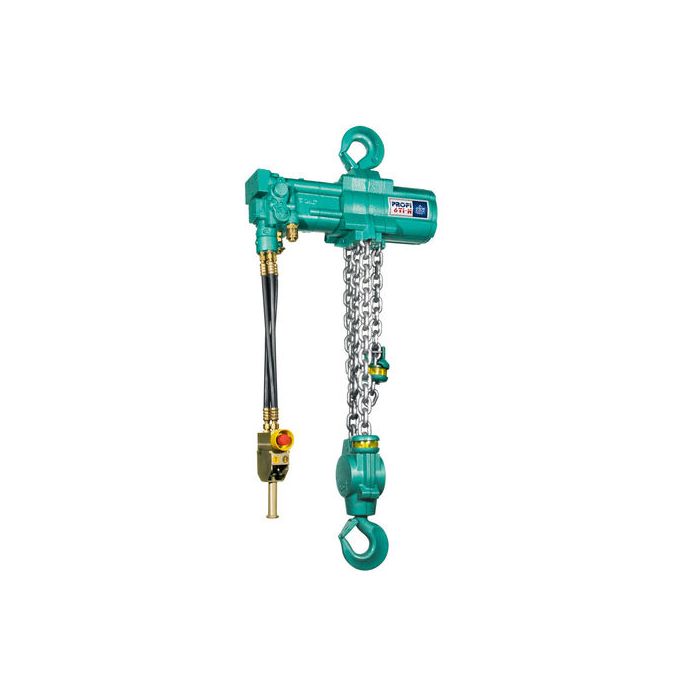

JDN Hydraulic Chain Hoist
PROFI - TI-H Model
Carrying capacities: 25 t up to 100 t Swl
With immediate effect we can supply you with JDN Hydraulic Powered Chain Hoists with carrying capacities up to 100 t Swl.
Depending of motor size the hoists work with an intake pressure of 100 bar up to 180 bar. Pressure fluids: Oil or HFC.
Our hydraulic chain hoist can be deployed as an alternative to air driven units in all places where hydraulic lines, central hydraulic systems or hydraulic aggregates are existent.
Classification as Standard: Ex II 2 GD IIA T4(X) / II 3 GD IIB T4(X) - Higher Classifications available upon request
Standard features:
- predestined for application in explosion-endangered areas
- sensitive, infinitive control of lifting/lowering and driving moves
- super-silent
- encapsuled and robust gear motor
- integrated overload switch-off
- only two supply connections at hoist
- “P” and “T”, leakage oil drained internally
- controlled load-lowering in case of supply oil failure
