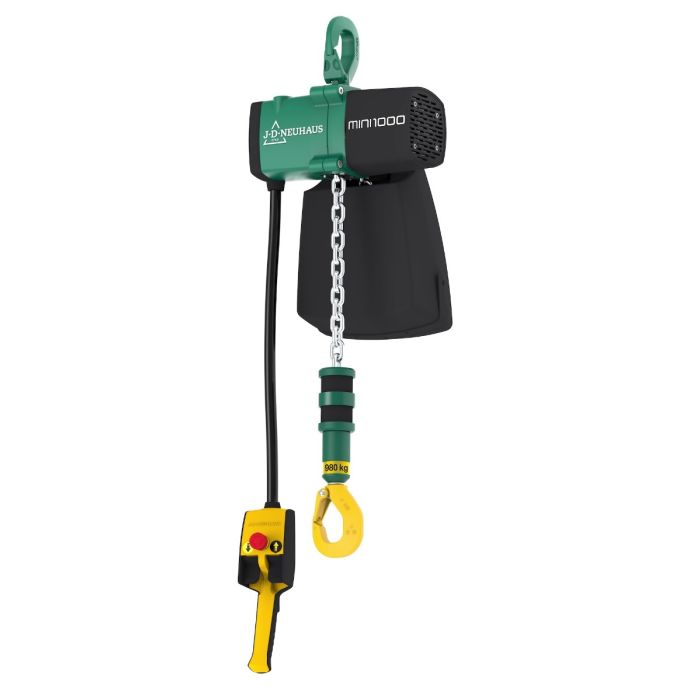

JDN Mini Air Hoist
Fitted as Standard with NFC Tag with Service App Available
Model: Mini
Manufacturer: J D Neuhaus (JDN) - (Germany)
Capacities: 125 kg, 250 kg, 500 kg and 980 kg
Air Pressure: 6 bar
Hoist Speeds: Up to 20% faster than the previous series
Product Overview
The Mini series is a robust and ultra-light weight in construction pneumatic chain hoist, with an aluminium motor housing body which provides the 125 kg and 250 kg Swl hoist units with a self-weight of just 10 kg at 3 metres lifting height and the 500 kg and 980 kg Swl units having a self-weight of 21 kg.
Suitable for numerous applications and environments, and can be found in manufacturing production assembly, petro-chem, food industry, construction sites to name but a few.
J D Neuhaus is synonymous with quality, they've been designing and manufacturing lifting equipment since 1745, think JDN, think quality.
Explosion Protection As Standard Zone 2 and 22:
Ex II 3G Ex h IIA T4 Gc X and Ex II 3D Ex h IIIA T130°C Dc X
Key benefits
- Reduced TCO (Total Cost of Ownership)
- Safe processes in production
- Easy and simple maintenance directly on site
Standard Features
- Extremely compact and light weight
- Life cycle: 800 operating hours
- Limit Switches for top and bottom hook positions
- The maximum speed can be reduced and continuously pre-set to suit the application requirements
- Sensitive pendant control offering infinitely variable speed by way of newly designed precision valves
- Explosion protection zone 2 (ATEX)
- Increased chain size for all models, Mini 125, Mini 250, Mini 500 & Mini 1000
- Suitable for lube-free operation
- Suitable for application in hazardous areas to the above EX area classifications
- Few components for easy maintenance
- Wear resistant motor braking system
- light weight for easy handling
- 100% duty rating and unlimited duty cycle
- Chain and hook made of high-quality hardened steel with a FOS 5:1
- Insensitive to dust, humidity and temperatures from -20 ° C to + 70 ° C
Easy Maintenance (Work which can be carried out in Situ)
- Greasing the Motor Chamber
- Replacing the Chain Guides
- Replacing the Motor Unit
- UK Spare parts in stock
The ease of maintenance and the quality of construction provides our customers with minimal down times and increased productivity.
The NFC service app allows engineers to access the hoist units original factory certificates as well as the JDN Mini air hoist operation and maintenance manual.
More Safety
- Redundant fall support, in the event the hoist comes free from the supporting structure the fall support is designed to take the weight of the hoist capacity.
The fall support is available as an extra cost option.
Optional Extras
- Stainless steel Hook
- Stainless steel load sleeve and buffer plates
- Stainless steel load chain
- Stainless steel chain guide
The JDN Mini air hoist is available with optional stainless steel features of the above main components. In addition the aluminium motor housing cast can be supplied coated or uncoated. Along with lubrication free motor, this makes the JDN Mini air hoist an ideal piece of lifting equipment for the food industry.
Other Options Available
- Adjustable Manual Push Trolley with easy hook in eye load bar
- Twistlock hook (top and bottom)
- Trigger guard for hand control
