Jib Crane with Manual and Electric Powered Slew Options
Jib Crane Solutions From Hoist & Winch Ltd
Hoist & Winch Ltd survey, design, supply, Install, load test & LOLER Certify complete bespoke turnkey Jib crane solutions.
Advantages & Features of Jib Crane Solutions
- Cost effective solution when compared to conventional overhead crane installations & available in Swl capacities up to 5t Swl and a range of jib arm radius & maximum hook heights
- Available with I Beam or Light Profile Track Construction Jib Arms with the latter providing ease of movement with very low friction push/pull cross travel movements
- Can be floor anchor mounted to a concrete base/steel structure or wall mounted to concrete wall or existing steel structure (Subject to survey & assessment of existing mounting structure details)
- Relatively easily moved to provide flexibility when re-arranging production or workshop areas
- Available with manual push/pull, hand geared or powered slewing mechanisms
- Optional controls with remote radio, column mounted, mobile or conventional low voltage pendant control fixed to hoist unit body
- Our Jib cranes can be supplied and fitted with various hoist types including 400v 3 phase , 110v/240v Single phase electric chain hoists, air powered hoist units and manual chain blocks.
- We can also design and build bespoke quayside jib cranes fitted with a winch to provide maximum hook heights
- Used for a multitude of indoor or outdoor applications including: manufacturing production lines , general workshop duties, marine quayside use, water treatment plants etc.
Jib Crane Case Study 1
General production duty in hydraulic actuator assembly area serving work benches:
- 250 Kg Swl I Beam Design
- 2.5 metre jib arm radius
- 3 metre maximum hook height
- 250 Kg Swl Stahl ST Series Electric chain hoist c/w powered travel trolley – 2 speed all motions
- 270 Degree jib arm slewing arc
- Manual Slew
- Pendant control fixed to hoist unit body
- Floor anchored to concrete base using Hilti anchors and resin
- Survey, design, supply, Installation, Load Test & LOLER Certify
Jib Crane Case Study 2

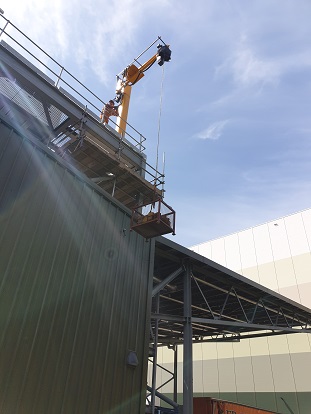

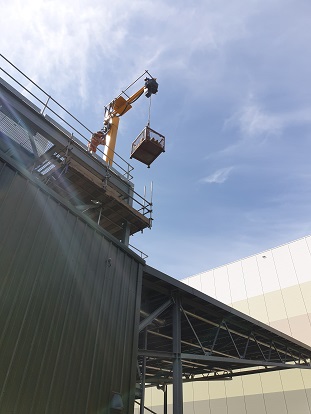

General Outdoor maintenance duty in food industry serving plant services:
- 500 Kg Swl I Beam Jib Arm Design
- 3 metre jib arm radius
- 3.5 metre maximum hook height above raised mezzanine floor and 12 metres total lifting height
- Electric powered slewing motion for ease and safe movement of jib arm/loads over edge of building
- Storm anchor arrangement
- 500 Kg Swl Donati DMK Series Electric hoist c/w powered travel trolley – 2 speed all motions
- 270 Degree jib arm slewing arc
- Restricted movement mobile pendant control
- Survey, design, supply, Installation, Load Test & LOLER Certification
