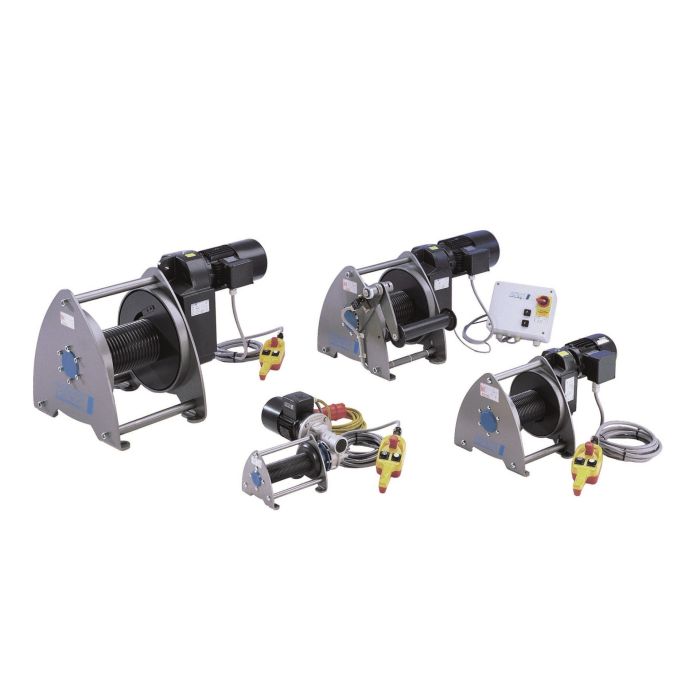

Pfaff - Electric Powered Wire Rope Winch
BETA SL Series
Capacity: 250 kg to 2,000 kg Swl
The electric wire rope winch BETA SL in its standard design works permanently reliably due to enclosed worm gear pairs or spur gears with high-quality brake motors. The electric wire rope winches BETA SL are available with a contactor control system including a gear limit switch.
Features and processing
• Maintenance-free worm gear or low-maintenance spur gear with milled and ground gear wheels – running in oil bath • Very quiet running byto diagonal interlock• Electrically released spring-applied disk brake • Duty ratio S3 - 40%• Range of temperature: -20 °C – +40 °C• Powerful three-phase motor for multi-range voltage 380-420V / 50Hz or 440-460V / 60Hz • Motor protection IP 55• Grooved rope drum• Large wire rope capacity• Contactor control 42 V• Gear limit switch• Electronic overload protection as of 1000 kg lifting load• According to the accident prevention provisions BGV D 8
Overview of the different versions of SL electrical wire rope winches |
Size | Capacitykg | Control | Mechanical |
SL0 | 250 | Control pendant | ./. |
SL1 | 500 / 630 | Control pendant or frequency converter | Single version pressure roller or slack rope switch, alternatively combination pressure roller and slack rope switch |
SL2 | 980 / 1250 | Control pendant or frequency converter | Single version pressure roller or slack rope switch, alternatively combination pressure roller and slack rope switch |
SL3 | 2000 | Control pendant or frequency converter | Single version pressure roller or slack rope switch, alternatively combination pressure roller and slack rope switch |
Delivery time for versions control pendant, pressure roller or slack rope switch appox. 10 daysDelivery time for version frequency converter approx. 25 days
