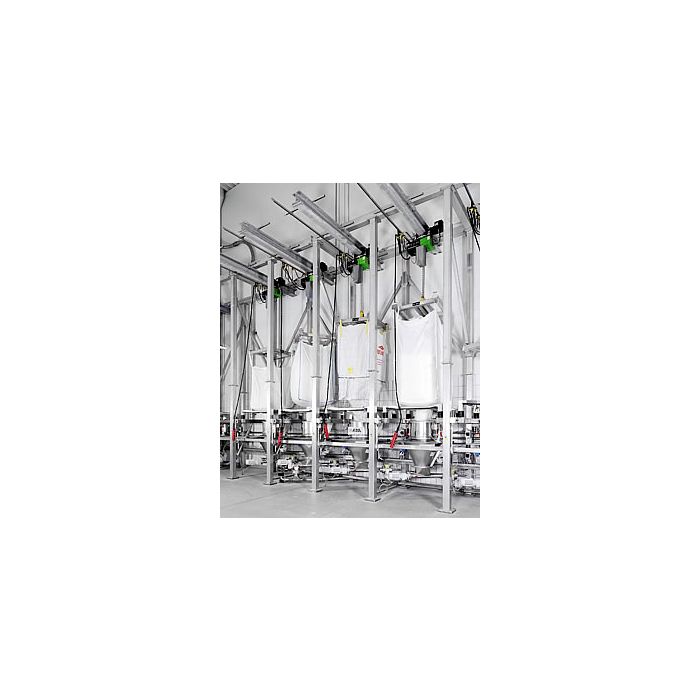

Stahl Electric Chain Hoist Designed for Big Bag Lifting

STB Model

Capacities - 500 kg to 3,200 kg Swl



The new Big Bag lifting electric chain hoist from STAHL was developed from the popular STD twin hook electric chain hoist. The outstanding special feature of the STB version are the flexability of the distance between the chain hoist body and load hook and the ability to lift bulky loads up to a top hook position without any obstructing edges such as trolley, chain hoist or chain box.

The Big Bag design is available for S.W.L.s up to 3,200 kg.

The STB bjig bag lifting electric chain hoist is optionally available in an explosion-proof version suitable for Zone 1, Zone 21 and Zone 22.



Features

• Main contactor as standard, for increased safety.

• Increased operating safety through 48 V control voltage (low volt age control), push-button pendant control, IP 65.

• 1 year warranty (excluding wear parts) and a lifetime lubricated gearbox.

• Duty cycle upto 60% ED

• Electromagnetic spring pressure brake holds the load safely even in the event of power failure.

• Standard operating volt age: Euro-voltage 400 V, 3-phase, 50 Hz, alternative volatges availabel upon request

• Motor protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets.



Options

• Stainless steel load chain (no reduction of working load limit).

• Flexible chain container.

• Other operating voltages.

• Radio remote control

• Locking load hook assembly

• Explosion Proof
