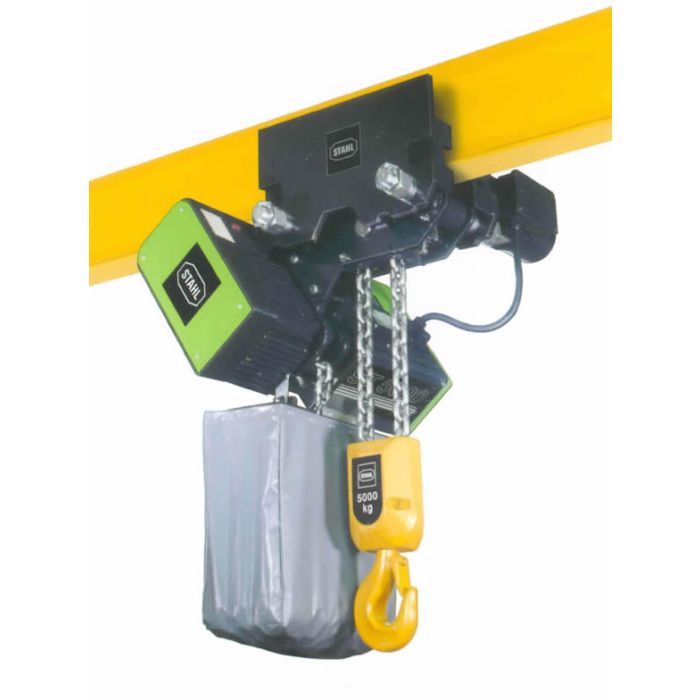

Stahl Electric Hoist C/W Low Headroom Motor Trolley - ST Model
Capacities - 125 kg to 6,300 kg Swl
The ST series electric chain hoists from STAHL ranks among the most comprehensive electric chain hoist programmes on offer in world. In use in thousands of applications for many decades, modernised and developed over many years the ST electric chain hoist is a true classic.
The ST series electric chain hoist offers reliablity, and undemanding as far as maintenance and power consumption are concerned.
The ST series electric chain hoist comes in 13 SWL's, ranging from 125 kg to 6,300 kg. The electric chain hoists can be used as stationary hoists with suspension hook or eye, with rigid mounting, or with a manual push or electric powered trolley, and are especially suitable for rugged applications.
Stahl also manufacture the complete ST series electric chain hoist programme in explosion-proof design.
Features
• Main contactor as standard, for increased safety.
• Increased operating safety through 48 V control voltage (low volt age control), push-button pendant control, IP 65.
• 1 year warranty (excluding wear parts) and a lifetime lubricated gearbox.
• Duty cycle upto 60% ED
• Electromagnetic spring pressure brake holds the load safely even in the event of power failure.
• Standard operating volt age: Euro-voltage 400 V, 3-phase, 50 Hz, alternative volatges availabel upon request
• Motor protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets.
• Suspension lug for compact dimensions and easy integration in closed-eye constructions.
Options
• Stainless steel load chain (no reduction of working load limit).
• Suspension hook
• Flexible chain container.
• Other operating voltages.
• Radio remote control
• Control for synchronized operation of several hoists.
• Manual and electric trolleys.
• Locking load hook assembly
• Explosion Proof
