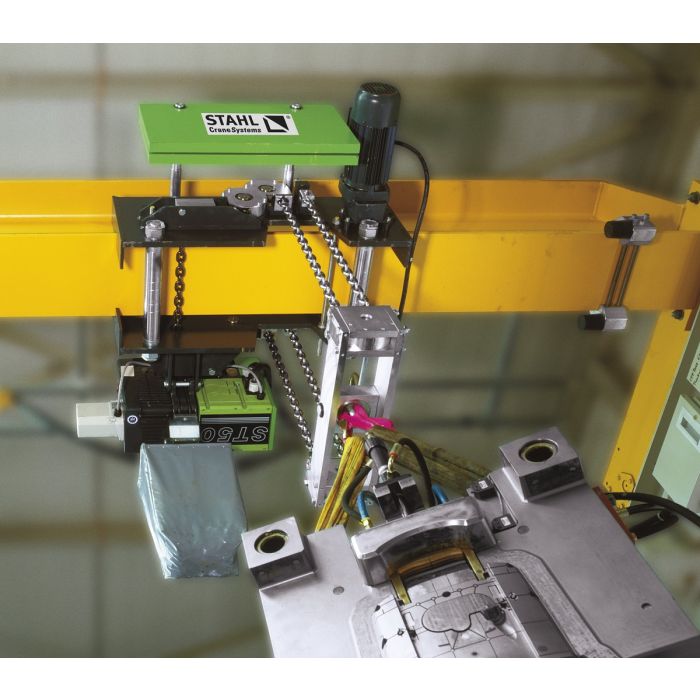

Stahl Electric Powered Chain Hoist C/W "ULTRA" Low Headroom Motor Trolley
Capacities - 125 kg to 5,000 kg Swl
STAHL CraneSystems sets new standards with its STK "ULTRA" low headroom electric chain hoist & trolley design. The construction of the ultra low headroom electric chain hoist & trolley alone saves a tremendous amount of closed headroom space.
The body of the electric chain hoist is mounted at an angle, meaning that no return sheave is required. With its headroom reduced by 60 %, the extra short headroom trolley achieves maximum hook paths particularly in extremely low-roof applications. It fully deserves its name as the dimensions of a mere 210 mm for a S.W.L. of 5,000 kg and 185 mm for a S.W.L. of 3,200 kg are extremely low and unbeatable at present. The chain hoists used here, mounted vertically, are based on the standard ST chain hoist series from STAHL CraneSystems. The patented chain drive is unique. The hook suspended in the centre is driven evenly by two chains running synchronously. The load is lifted without swinging or vibration. The STK chain hoist series for a S.W.L. range from 125 kg to 5,000 kg is naturally also available in an explosion-proof version for Zone 1, Zone 21 and Zone 22.
Features
• Main contactor as standard, for increased safety.
• Increased operating safety through 48 V control voltage (low volt age control), push-button pendant control, IP 65.
• 1 year warranty (excluding wear parts) and a lifetime lubricated gearbox.
• Duty cycle upto 60% ED
• Electromagnetic spring pressure brake holds the load safely even in the event of power failure.
• Standard operating volt age: Euro-voltage 400 V, 3-phase, 50 Hz, alternative volatges availabel upon request
• Motor protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets.
• Suspension lug for compact dimensions and easy integration in closed-eye constructions.
Options
• Stainless steel load chain (no reduction of working load limit).
• Suspension hook
• Flexible chain container.
• Other operating voltages.
• Radio remote control
• Control for synchronized operation of several hoists.
• Manual and electric trolleys.
• Locking load hook assembly
• Explosion Proof
