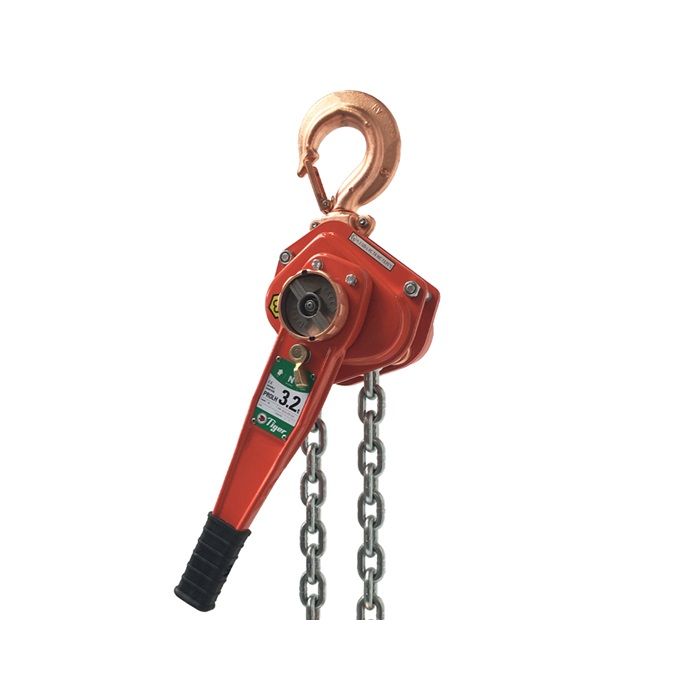

Tiger Spark Resistant XLH Lever Hoist: Safe and Powerful Lifting for Hazardous Environments

Capacity: 800 kg - 10,000 kg

Product Description:

The Tiger Spark Resistant XLH Lever Hoist is a premium lifting solution designed for hazardous environments where the risk of explosion is present. ATEX certified and adhering to strict safety regulations, this hoist ensures maximum user protection in Zones 1 & 2 (gas) and Zones 21 & 22 (dust).

Key features include:

Spark-resistant construction: Copper-plated components, stainless steel fixings, and a special coating minimize the risk of ignition from sparks.
Durable design: Built to withstand demanding applications with a robust yet lightweight construction.
Lifting capacity options: Available in a range of capacities to handle various loads.
Safety features: Corrosion-protected load chain and a reliable braking system for secure operation.

Capacity: 800kg - 10,000kg (depending on model)
Lift Height: Varies depending on model (refer to manufacturer specifications)
Compliance: ATEX Directive 2014/34/EU, Machinery Directive 2006/42/EC
Material: Steel with special non-sparking coating, copper-plated components, stainless steel fixings

Built for ATEX Zones:
- Ensure maximum safety in explosive atmospheres (Zones 1 & 2 for gas, Zones 21 & 22 for dust) with compliance to ATEX Directive 2014/34/EU.
Spark-Resistant Design:
- Minimize the risk of ignition with copper-plated components, stainless steel fixings, and a special non-sparking coating.
Durable Construction:
- Handle demanding jobs with a lightweight yet robust design, built to last.
Lifting Capacity Options:
- Choose from a range of capacities (800kg to 10,000kg) to suit your specific lifting needs.
Enhanced Safety Features:
- Includes a corrosion-protected load chain and a robust braking system for reliable operation.

In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones. Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 2014/34/EU and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record. ATEX marking: Ex II 2 GD c IIC T4 IIIC T135°C. Suitable for gas and dust hazardous areas: Zone 1 & 2 (gas) and Zone 21 & 22 (dust).

Category II – high safety – Certification: Ex II 2 GD c IIC T4 IIIC T135°C
Manufactured in accordance with ATEX Directive 2014/34/EU and Machinery Directive 2006/42/EC
Developed for the use in potentially explosive atmospheres (ATEX zones).
Special coated units
Different capacities and heights of lift to suit your specific requirements

Certification:

Under the ATEX Directive 2014/34/EU, equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. Our products are assigned as follows:

Ex II 2 GD c IIC T4 IIIC T135°C

Our products are third party certified by CML, EU Notified Body (No 2503) for the European Union Directive 2014/34/EU (ATEX).

It is the responsibility of the user to identify which explosion proof classification is required, not the hoist manufacturer or supplier.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.

Available with stainless steel load chain – any capacity over 1t deration will apply
Available with overload protection
All Tiger lever hoist handles contain rubber which is free from phthalates
