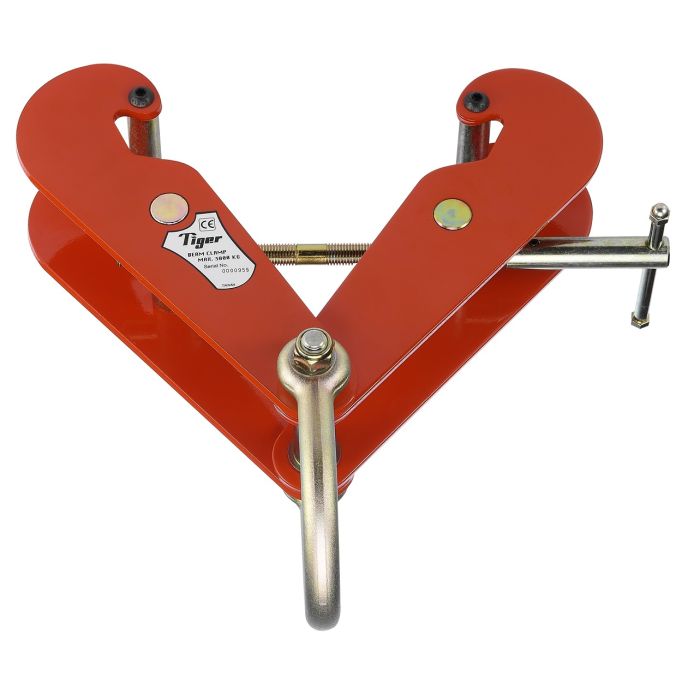

Tiger Lifting Beam Clamp With Shackle
BCS Model
Capacity: 1,000 - 10,000 kgs
The BCS Model Tiger Lifting beam clamp is designed to provide a versatile and quick rigging point for all types of lifting equipment with the benefit of a swivelling anchor point.
These Tiger beam clamps offer a wide, easily adjustable, jaw capacity, which, again lends itself to a variety of applications.
These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.
Features at a Glance
- Range from 1.0t to 10.0t
- Highly flexible – for lifting, pulling or as an anchor point
- Operating temperature of -50° to +50°
- Quick and versatile rigging point for hoisting equipment
- Multidirectional adjusting screw spindle for easy attachment and safe and secure grip
- 5:1 Safety factor
- Shackle suspension point
- Wide Beam flange adjustment range
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Reduction in working load limits when side loads applied:
Angle from vertical |
0° |
0° - 15° |
15° - 30° |
30° - 45° |
Reduction Factor |
Nil |
17% |
34% |
50% |
Product Code |
WLL |
WLL |
WLL |
WLL |
BCS-0100 |
1000kg |
830kg |
660kg |
500kg |
BCS-0200 |
2000kg |
1660kg |
1320kg |
1000kg |
BCS-0300 |
3000kg |
2500kg |
2000kg |
1500kg |
BCS-0500 |
5000kg |
4100kg |
3300kg |
2500kg |
BCS-1000 |
10000kg |
8300kg |
6600kg |
5000kg |
The above working load limits and derations have been established for Tiger BCS model clamps and apply only for overhead beam attachments. They DO NOT apply when used for lifting beams. Our Tiger BCU clamp has been specifically designed for this purpose. The above tables apply only to the Tiger BCS model and we advise that structural calculations are carried out on all beams and supporting steel work by qualified engineering departments to ensure safe operation.
Note: Some stock in the 1t – 5t range may be supplied with a bow shackle rather than a D shackle (as in the drawing of the 10t unit below). If the fitting or dimensions are critical please contact us for information on availability.
