Tiger Manual & Geared Trolleys: Move Heavy Cargo Effortlessly

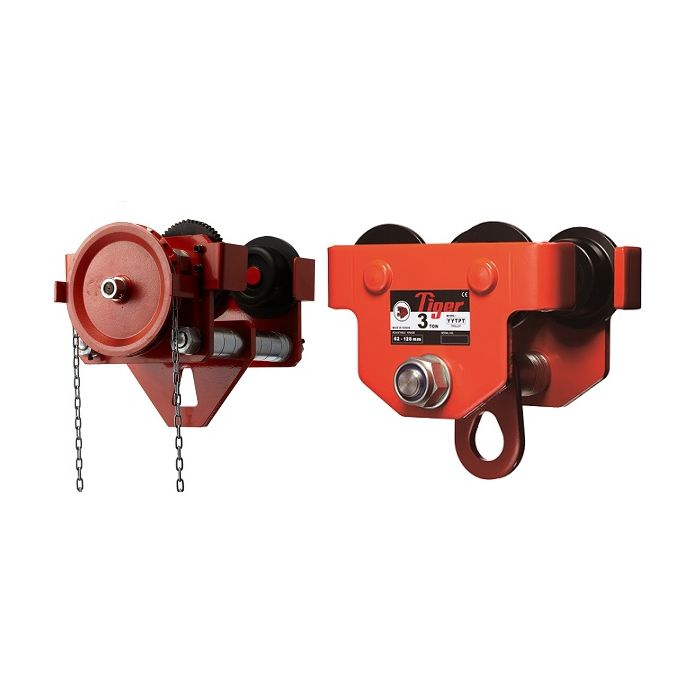

Choose the Right Power for Your Needs: Tiger TPS Push Trolley vs. Tiger TGS Geared Trolley

TPS/TPT & TGS/TGT Models

Capacity: 500 kg - 35,000 kg

Product Descriptions:

Tiger TPS Manual Push Trolley:

Effortless Movement: The TPS trolley requires minimal pushing force thanks to its smooth-rolling wheels and ergonomic design. Ideal for workshops, warehouses, and other environments with frequent short-distance lifting.
Durable Construction: Built with high-strength steel, the TPS trolley offers exceptional durability and a long lifespan. It can handle loads from 0.5 to 10 tonnes, making it suitable for various applications.
Safe Operation: Anti-drop plates ensure the trolley stays securely on the beam, while sealed bearings provide smooth operation and minimize maintenance requirements.

Tiger TGS Hand Geared Trolley:

Powerful Lifting: The TGS trolley features a geared mechanism that multiplies your pushing force, allowing you to effortlessly move heavy loads up to 35 tonnes. Perfect for construction sites, industrial settings, and other demanding tasks.
Precision Control: The hand chain mechanism offers precise control over the movement of the load, ensuring safe and accurate positioning.
Versatile Options: Available in single and twin bar configurations, the TGS trolley adapts to various beam widths. Optional beam locking devices and corrosion-resistant versions cater to specific needs.

Additional Features:

Both trolleys operate in temperatures ranging from -30°C to +50°C (extended range available).
They comply with all relevant safety standards.
Tiger offers a wide range of accessories to enhance functionality and safety.

Conclusion:

Whether you choose the Tiger TPS push trolley for its ease of use or the TGS geared trolley for its power and precision, you can be confident that you're getting a reliable and durable lifting solution.

Features

Plain Trolley Range from 0.5t to 10.0t
Geared Trolley Range from 0.5t to 35.0t
The anti-drop plates design ensures extra safety, and prevents damage to the wheels when contacting end rail stoppers
Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading
The wheels run on sealed bearings for smoother rolling with less effort and maintenance
Twin bar or single bar trolleys available
Geared type available (with hand chain length to suit your requirements)
Extended beam width available
Corrosion or Spark Resistant versions available
Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
Optional beam locking device
Powder coated universal wheels suit both tapered and flat flange beams
The 5:1 factor of safety allows for use with manual or powered hoists

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.

Corrosion Resistant Trolleys

Critical components, including the hand chain and the pinion gear for geared trolleys, are protected by our OCP (Organic Compound Protection) finish giving unprecedented long-term reliability. Stainless steel fittings are used throughout the trolley. These ensure the initial capital outlay of purchasing a Tiger corrosion resistant trolley is protected by allowing the statutory inspections and re-certifications to be easier and also help with the overall aesthetics of the trolley being maintained in an “as new” condition. Our corrosion resistant trolleys are finished in our high quality white Akzo Nobel powder coat paint offering excellent additional corrosion protection and a high degree of impact protection.

Spark Resistant Trolleys

In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones. Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 94/9/EC and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record. Atex marking: Ex II 2 GD c IIC T4 IIIC T135°C. Suitable for gas and dust hazardous areas: Zone 1 & 2 (gas) and Zone 21 & 22 (dust).
