Screw Lock Lifting and Pulling Clamp
Ideal for Positioning Loads in Welding Fabrication Workshops
Model: TSH
Manufacturer: Tigrip (Germany)
Capacities: 750 kg, 1500 kg, 3000 kg and 5000 kg Swl
Jaw opening: 0 - 80 mm (Depending on Swl)
Product Overview

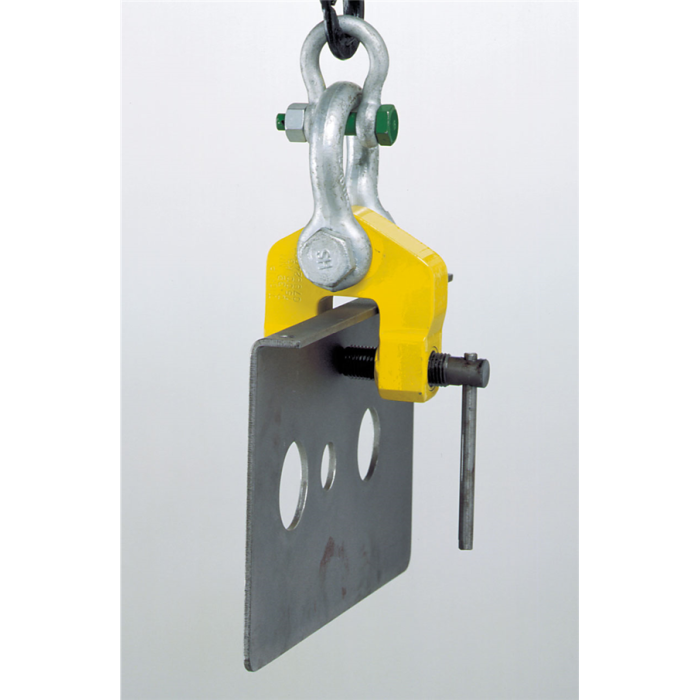

The Tigrip TSH Screw Lock Lifting Clamps with swivelling shackle included are manufactured for vertical lifting and horizontal pulling of loads of up to 5000 kg, with a jaw opening of up to 80 mm for the largest capacity option. Making them useful for welding fabrication workshops to position sheet steel, steel girders or steel constructions.
The clamps must be hand-tightened to the material by means of the screw spindle. Once the clamp is tightened and lifting begins, the pivoting pad clamping system produces a wedging action against the material, holding the load securely.
The plate surface of the material to be lifted must not exceed a hardness level of HRC 50/Brinell 480.
A single shackle is included with thsi clamp.
Designed and manufactured in Germany by Tigrip who are part of the Columbus McKinnon Group.
Features
- Offer the best means of holding and securing loads - great for positioning
- Primarily used as anchor points to allow fabrications to be pulled together and positioned during assembly or prior to welding
- Supplied complete with an alloy shackle that allows for pulling 180º
- High force screw threads
- Hardened steel jaws
- The clamps are attached by turning the screwed threaded axle
- When load is applied to the clamp, the circular toothed pad pivots in a cam action, gripping the load
- Swivel jaws increase grip if plate moves
