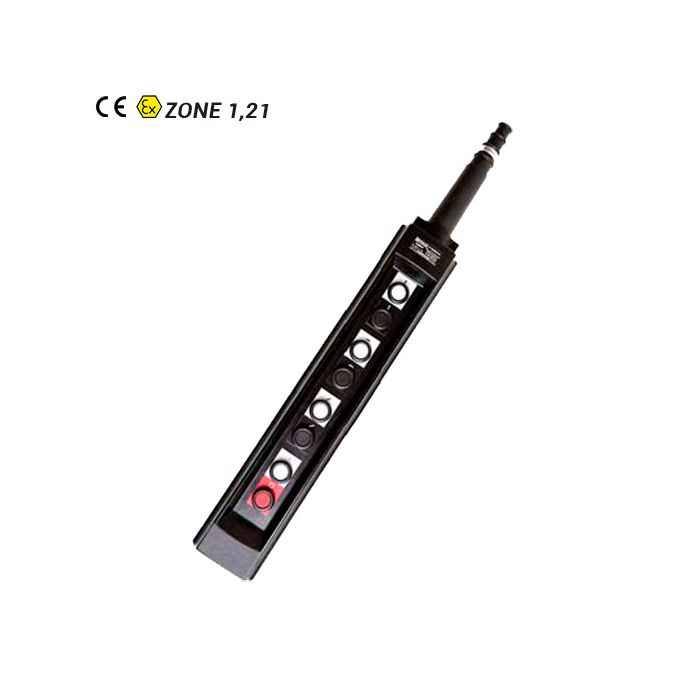

ATEX Pendant Stations
Zone 1 and Zone 2 (Gas)
Zone 21 and Zone 22 (Dust)
DESCRIPTION
Our Range of ATEX rated pendants are available with 2, 4, 6 or 8 push buttons and with option of up to three contact blocks per push button, they also offer an optional double-step actuation mode for dual speed control.
In addition to the standard single 6 or 8 button pendants, two handsets can be connected to provide either a 12 or 16 button assembly.
Our range of XAWP pendant stations are suitable for all types of industry and primarily used for electric overhead cranes, electric wire rope hoists and electric chain hoists in explosion risk applications.
The XAWP ATEX pendants are manufactured in Europe.
TECHNICAL DATA
Marking:
EX II 2GD
Ex d e IIC T6 Gb
Ex d e mb IIC T6 Gb
Ex tb IIIC T85ºC Db
Certificate: EU-Type Examination Certificate
Approvals: ATEX - INERIS 03ATEX0122
Standards: Cenelec EN50014, EN50018, EN50019, EN50028, EN500281-1-1
Operating Ambient Temperature Range: -20ºC to 60ºC
Ingress protection: IP65 according to IEC 60529
Pendant Case Material: Glass fibre reinforced polyester (GRP)
Features of the contact block:
Ith = 10 A; Ui = 415 V
AC: Ue = 380 V; Ie = 1,9 A | Ue = 240 V; Ie = 3 A | Ue = 120 V; Ie = 6 A
DC: Ue = 250 V; Ie = 0,27 A | Ue = 125 V; Ie = 0,55 A | Ue = 24 V; Ie = 2,87 A
Connection: Screw Clamp Terminals
Core Sizes: 1 x 0.5 mm2 up to 2 x 1.5 mm2 (with or without ferrule)
Features of the LED pilot light:
Rated voltage: 24…254 V AC/DC
Maximal current: 2…10 mA
Mechanical endurance: Head: 5 million operations – Contact block: 1 million operations
Cable entries: For cable Ø 10 to Ø 22 mm
