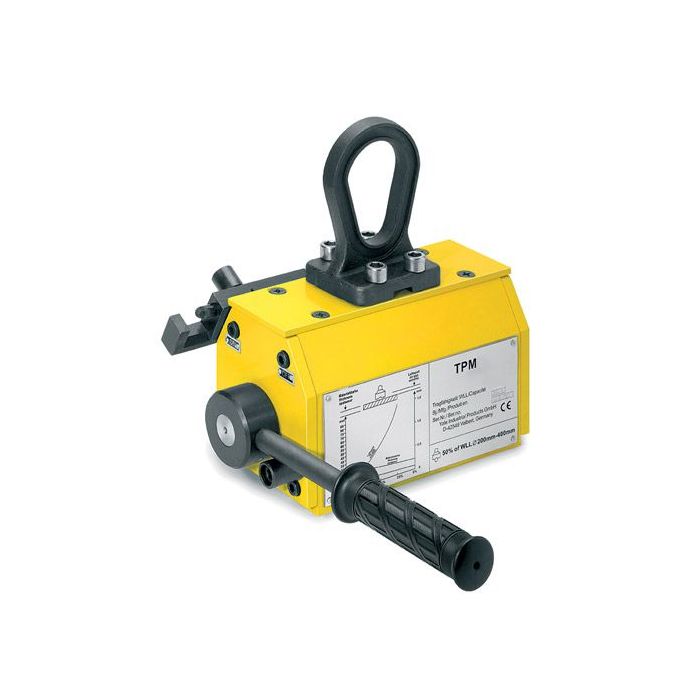

Permanent Lifting Magnet
Suitable for Flat Steel Material and Round Steel Bar
Model: TPM
Manufacturer: Yale (Germany)
Capacities For Flat Material: 100 kg, 300 kg, 500 kg, 800 kg, 1000 kg and 2000 kg Swl
Capacities For Round Bar: 50 kg, 150 kg, 250 kg, 400 kg, 500 kg and 1000 kg Swl
Product Overview
Designed and manufactured for easy, quick and economical transport of heavy objects made of ferro-magnetic material. The load is not affected mechanically which allows lifting of flat as well as round material.
The permanent magnets do not require electric energy and will leave only minor residual magnetism on the material after use.
A suitable addition to any steel fabrication workshop or manufacturing environments were lifting and handling of steel materials is present.
Our range of Yale TPM lifting magnet offers the user a high-powered magnetic lifting device to lift and handle steel objects that have no connection point and would otherwise be difficult to maneuver.
Maximum lifting capacity is achieved by using mild steels with the noted minimum thickness, full details can viewed within the product data sheets.
Mild steel st37 - Fe 360 to BS EN 10 025 1990 (DIN 17100)
Factors That Reduce the Magnetic Force of the TPM Lifting Magent
Air Gap: High magnetic forces created by the TPM allow the magnet to clamp components through the air gap, however, air gaps will reduce the magnetic performance as they provide a barrier between the contact surfaces. Air gaps occur in a number of different ways such as paint, dust and heavy mill scale.
Poorly machined surfaces also constitute an air gap. Please down rate the magnet capacity in accordance with the adhesive force/air gap diagram below.
Material Thickness: If the TPM is used to lift plates thinner than the recommended minimum thickness, the clamping forces will be significantly reduced. Performance curves can be identified in conjunction with the adhesive force/flat thickness.
Contact Area: Full lifting capacity can only be achieved when the magnet has full contact area with the component being lifted. If the contact surface has holes in or is uneven then the performance will be affected accordingly. Always carry out a trial lift in these circumstances to establish correct lifting before transporting the load.
Material Type: Certain materials have different abilities to carry magnetism. For materials other than mild steel a reduction factor must be applied in order to calculate the effective clamping force.
Typical Values:
Ferrous alloy steels 0.8
High carbon steels 0.7
Cast iron 0.55
Examples of reduced WLL :
Mild steel 500g
Cast iron 500kg x 0.55 = 275kgs
